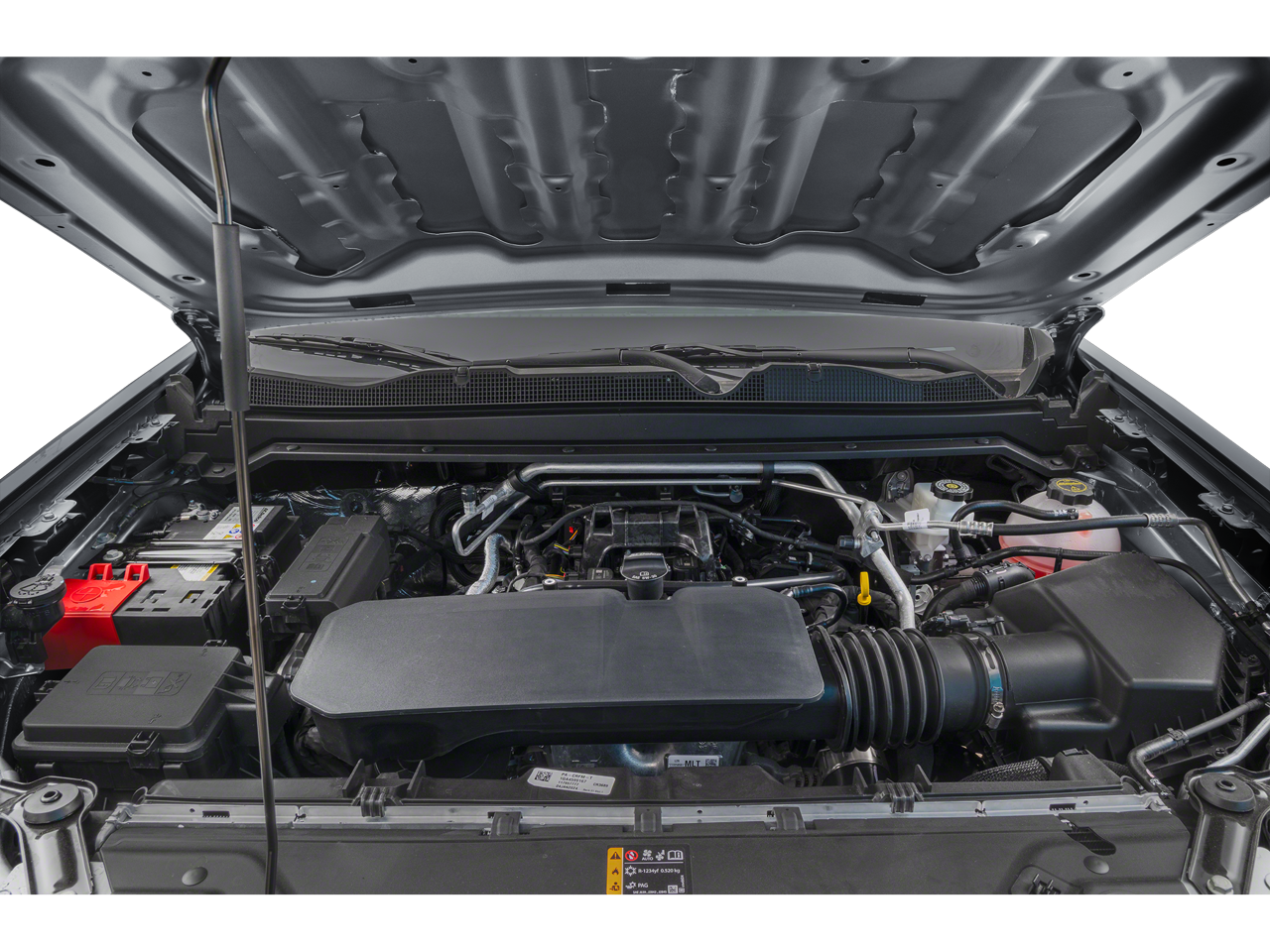

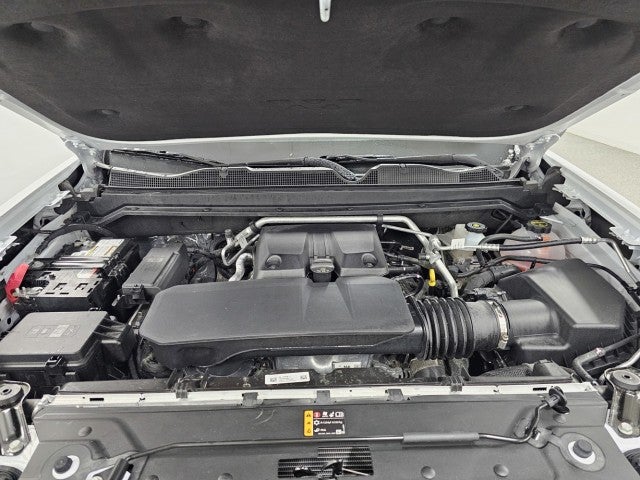

ENGINE, TURBOMAX

• (310 hp [231 kW] @ 5600 rpm
• 430 lb-ft of torque [583 Nm] @ 3000 rpm) (STD)

• Vehicle
• Number of Passenger Doors: 4
• Mileage
• Fuel Economy Est-Combined (MPG): 21 (2024)
• EPA Fuel Economy Est - City (MPG): 19 (2024)
• EPA Fuel Economy Est - Hwy (MPG): 24 (2024)
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 800
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3500
• Gross Axle Wt Rating - Rear (lbs): 3600
• Curb Weight - Front (lbs): 2354
• Curb Weight - Rear (lbs): 1850
• Gross Vehicle Weight Rating Cap (lbs): 6050
• Gross Combined Wt Rating (lbs): 9100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 350
• Maximum Trailering Capacity (lbs): 7700
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3500
• Spring Capacity - Rear (lbs): 3600
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3500
• Axle Capacity - Rear (lbs): 3600
• Axle Ratio (:1) - Rear: 3.42
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.4 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 13.3 x - TBD -
• Tires
• Front Tire Order Code: QHR
• Rear Tire Order Code: QHR
• Spare Tire Order Code: ZAO

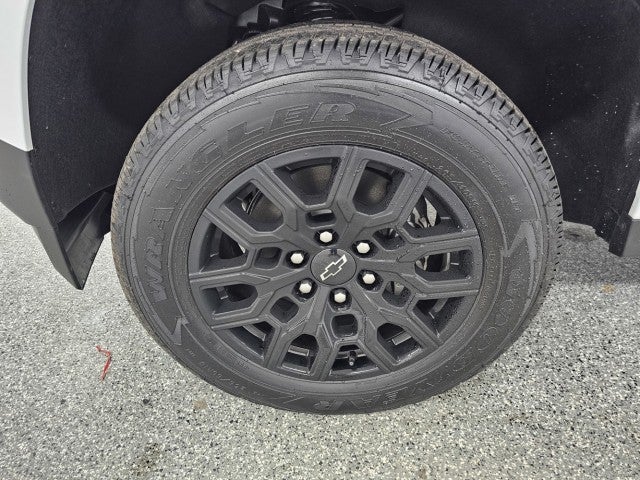

• Front Tire Size: 255/65R17
• Rear Tire Size: 255/65R17
• Spare Tire Size: 255/65R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8
• Rear Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Fully-boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 21.4
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 131.36
• Length, Overall (in): 213.02
• Width, Max w/o mirrors (in): 74.91 w/Mirrors Folded, 84.4 w/Mirrors
• Height, Overall (in): 78.79
• Overhang, Front (in): 34.51
• Overhang, Rear w/o bumper (in): 47.11
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 23.4
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.9
• Ground Clearance, Rear (in): 7.9

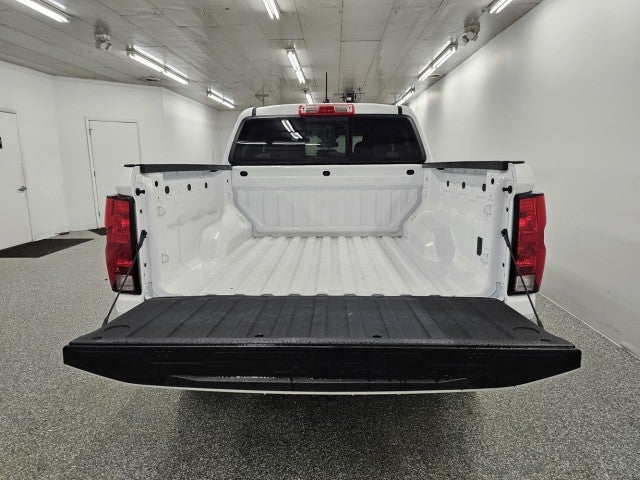

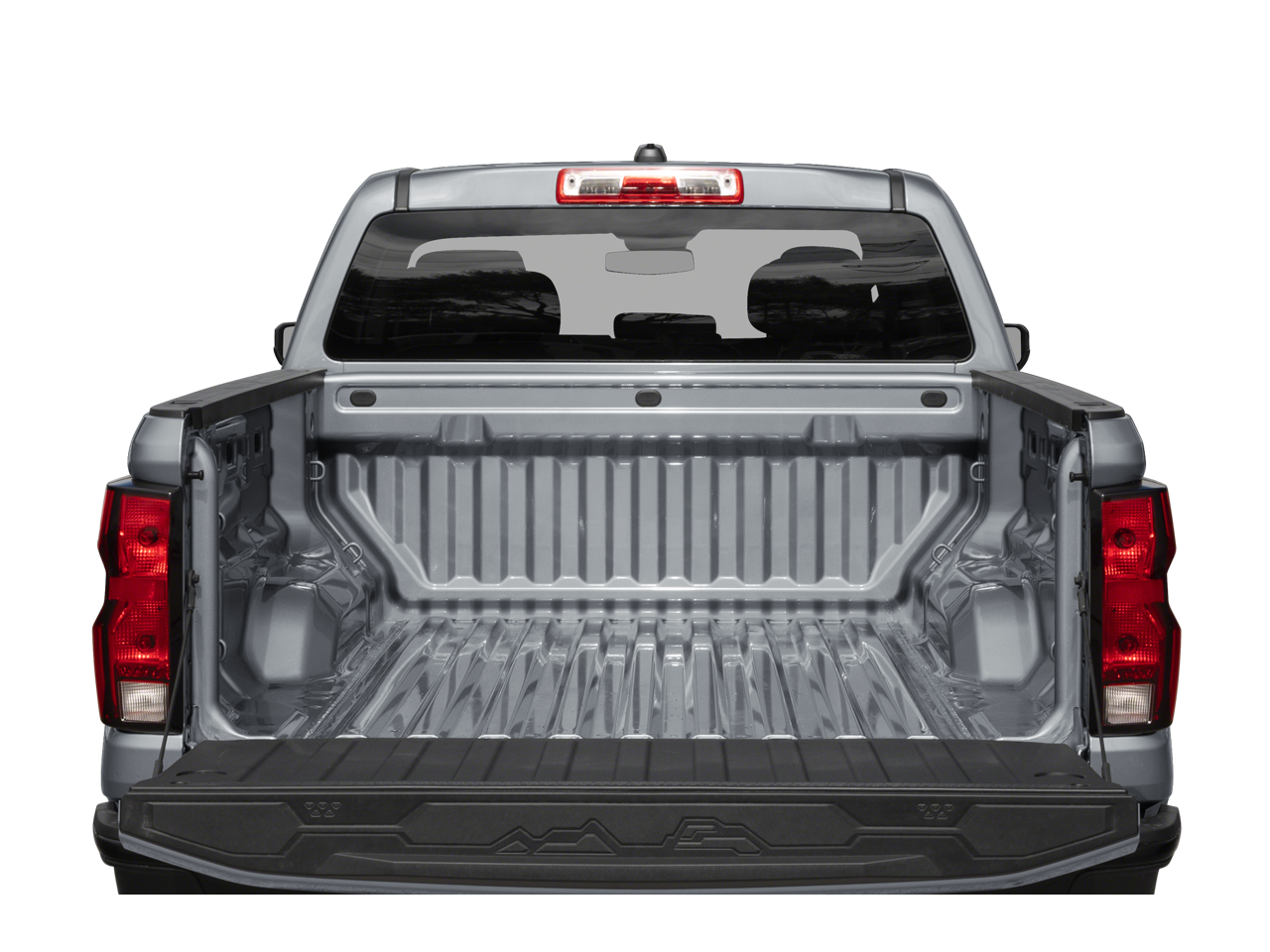

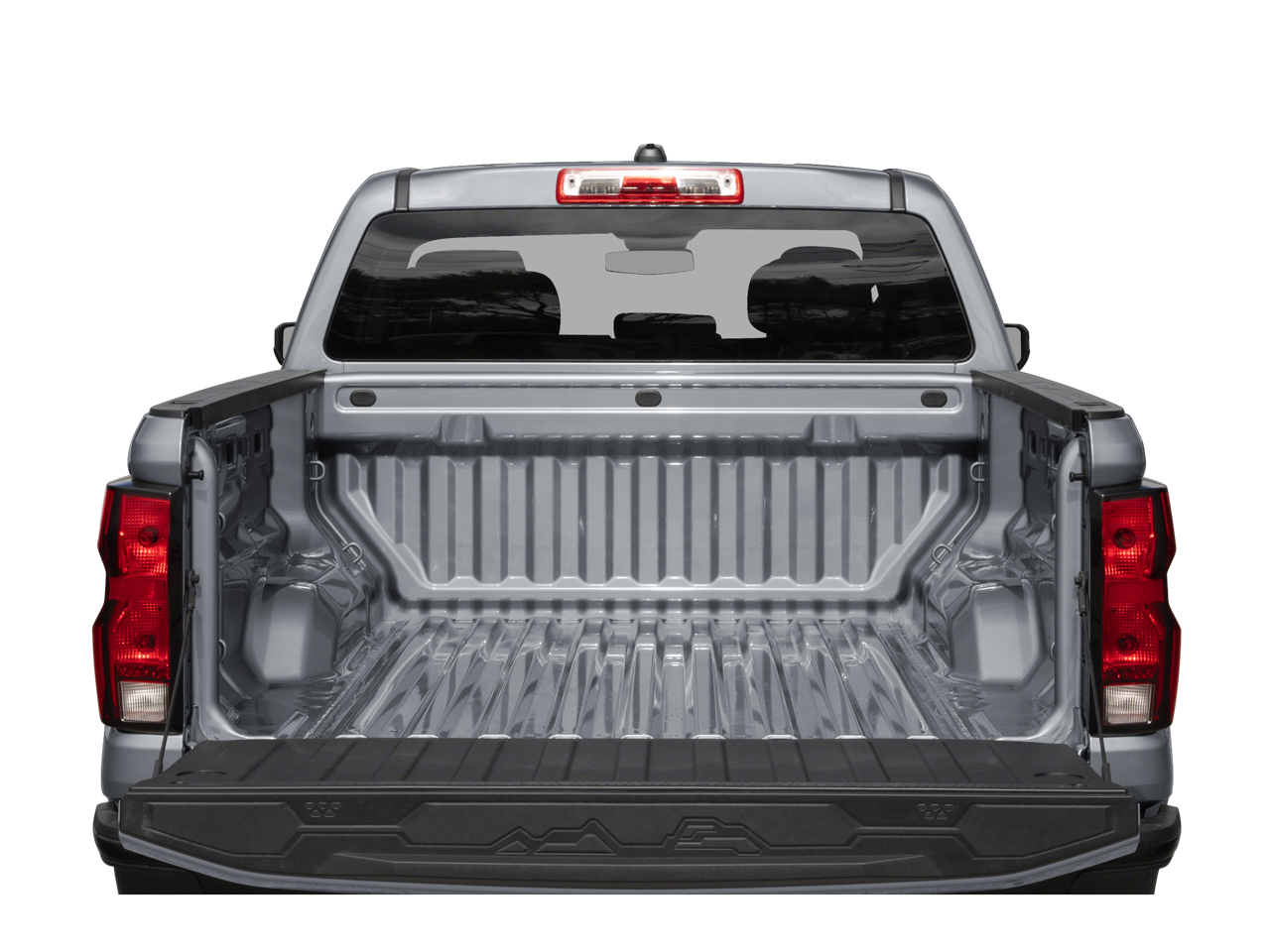

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 61.7
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 58.8
• Cargo Box Width @ Wheelhousings (in): 45.5
• Cargo Box (Area) Height (in): - TBD -
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 41.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.29
• Front Leg Room (in): 45.17
• Front Shoulder Room (in): 57.4
• Front Hip Room (in): 54.71
• Second Head Room (in): 38.28
• Second Leg Room (in): 34.7
• Second Shoulder Room (in): 56.13
• Second Hip Room (in): 53.09
• Summary

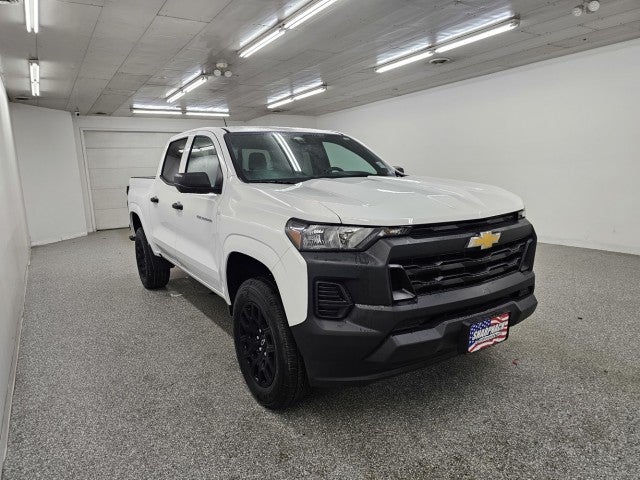

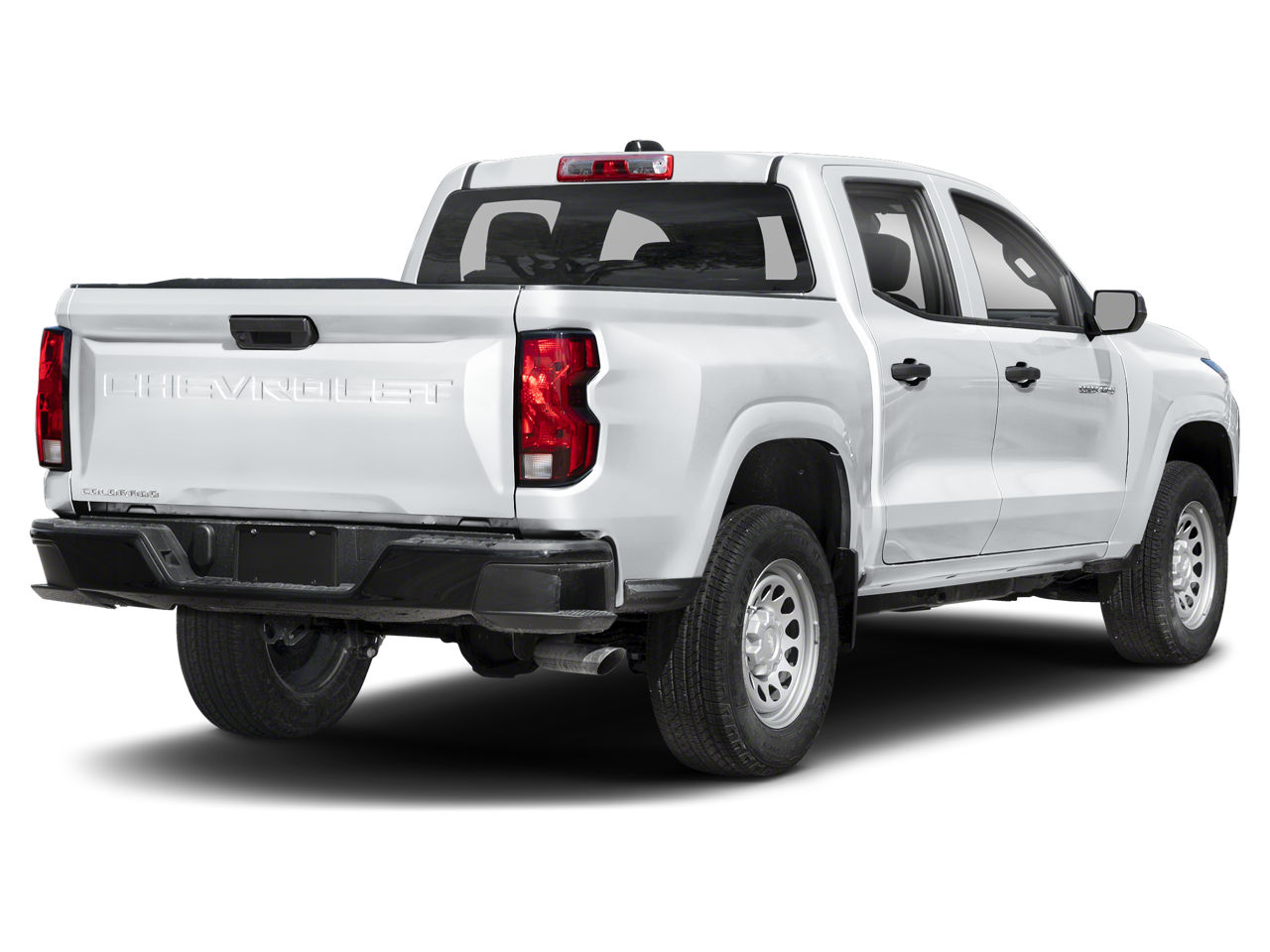

• Vehicle Name: Chevrolet Colorado
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.3 (2024)
