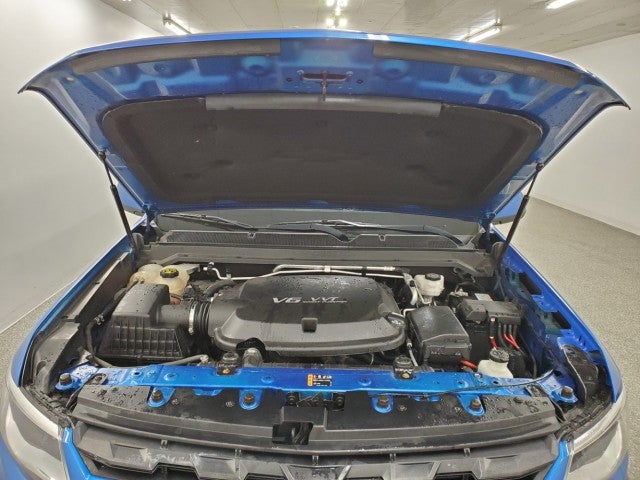

ENGINE, 3.6L DI DOHC V6 VVT

• (308 hp [230.0 kW] @ 6800 rpm
• 275 lb-ft of torque [373 N-m] @ 4000 rpm) (STD)

• Vehicle
• Number of Passenger Doors: 4
• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 24
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 15.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3200
• Gross Axle Wt Rating - Rear (lbs): 3500
• Curb Weight - Front (lbs): 2186
• Curb Weight - Rear (lbs): 1740
• Gross Vehicle Weight Rating Cap (lbs): 6000
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 700
• Maximum Trailering Capacity (lbs): 7600
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Semi-Elliptic, 2-Stage, Multi-Leaf
• Spring Capacity - Front (lbs): 3200
• Spring Capacity - Rear (lbs): 3500
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3200
• Axle Capacity - Rear (lbs): 3500
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.2 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 12.8 x - TBD -
• Tires
• Front Tire Order Code: QHR
• Rear Tire Order Code: QHR
• Spare Tire Order Code: ZAO

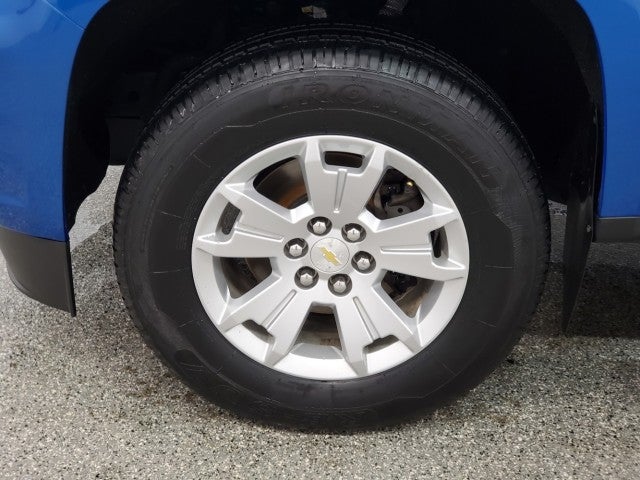

• Front Tire Size: 255/65R17
• Rear Tire Size: 255/65R17
• Spare Tire Size: 265/70R16
• Front Tire Capacity (lbs): 3200
• Rear Tire Capacity (lbs): 3500
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8
• Rear Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x 8
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 41.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 21
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 128.3
• Length, Overall (in): 212.7
• Width, Max w/o mirrors (in): 74.3
• Height, Overall (in): 70.6
• Overhang, Front (in): 36.9
• Overhang, Rear w/o bumper (in): 47.2
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 8.2

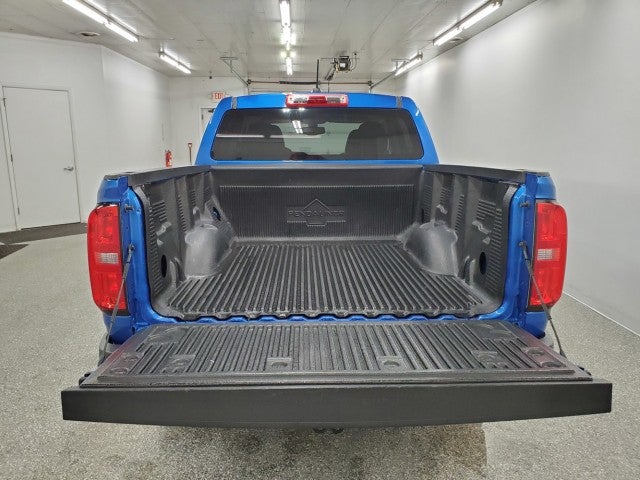

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 61.7
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 57.8
• Cargo Box Width @ Wheelhousings (in): 44.4
• Cargo Box (Area) Height (in): - TBD -
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 41.3
• Ext'd Cab Cargo Volume (ft³): - TBD -

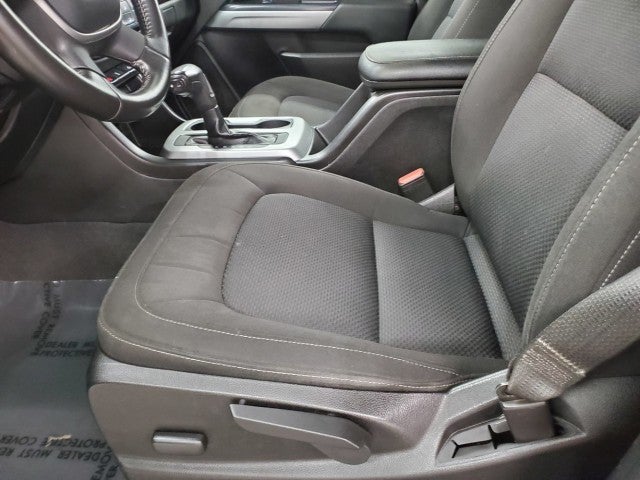

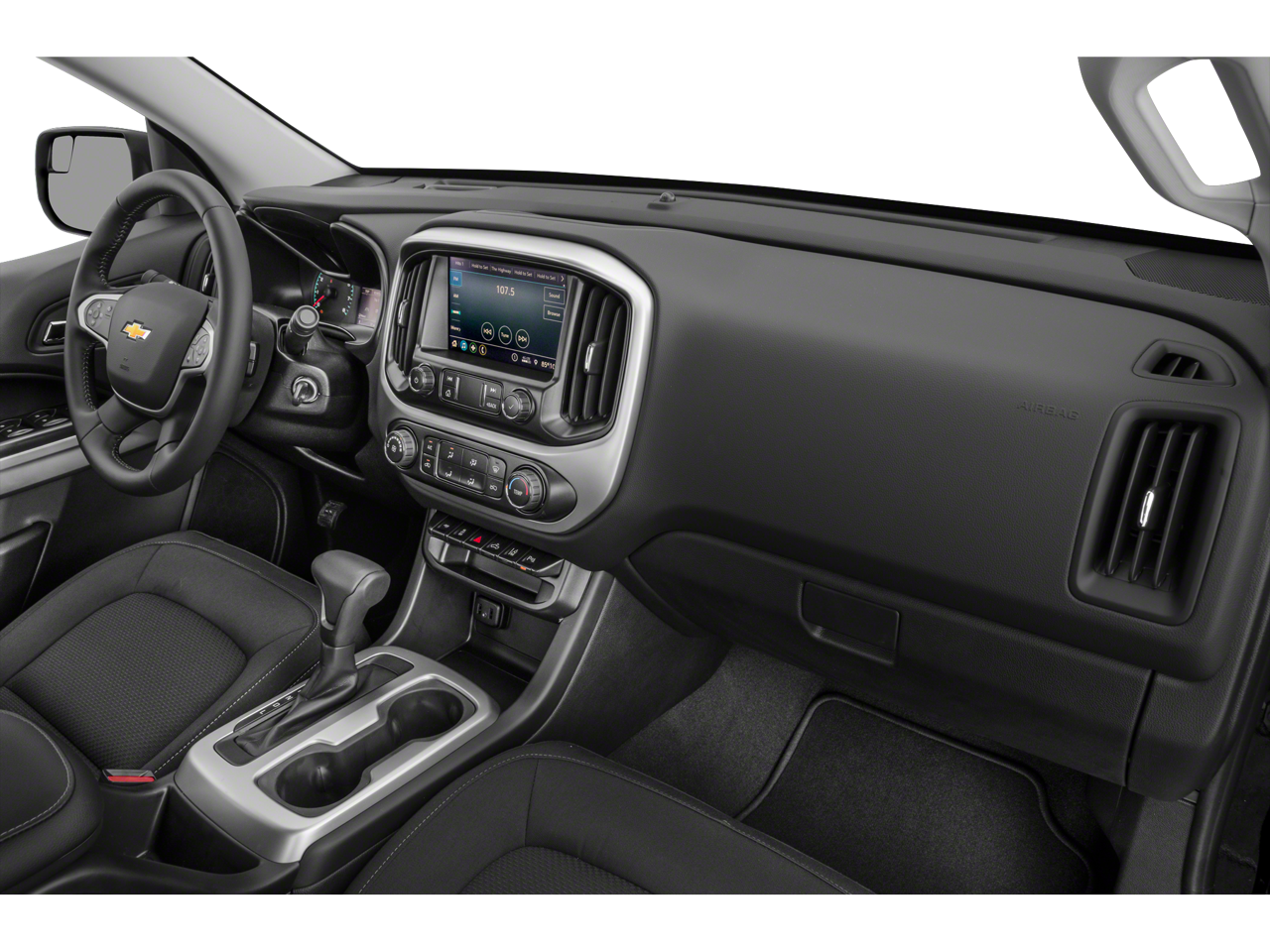

• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.4
• Front Leg Room (in): 45.0
• Front Shoulder Room (in): 57.5
• Front Hip Room (in): 55.0
• Second Head Room (in): 38.3
• Second Leg Room (in): 35.8
• Second Shoulder Room (in): 56.2
• Second Hip Room (in): 53.3
• Summary

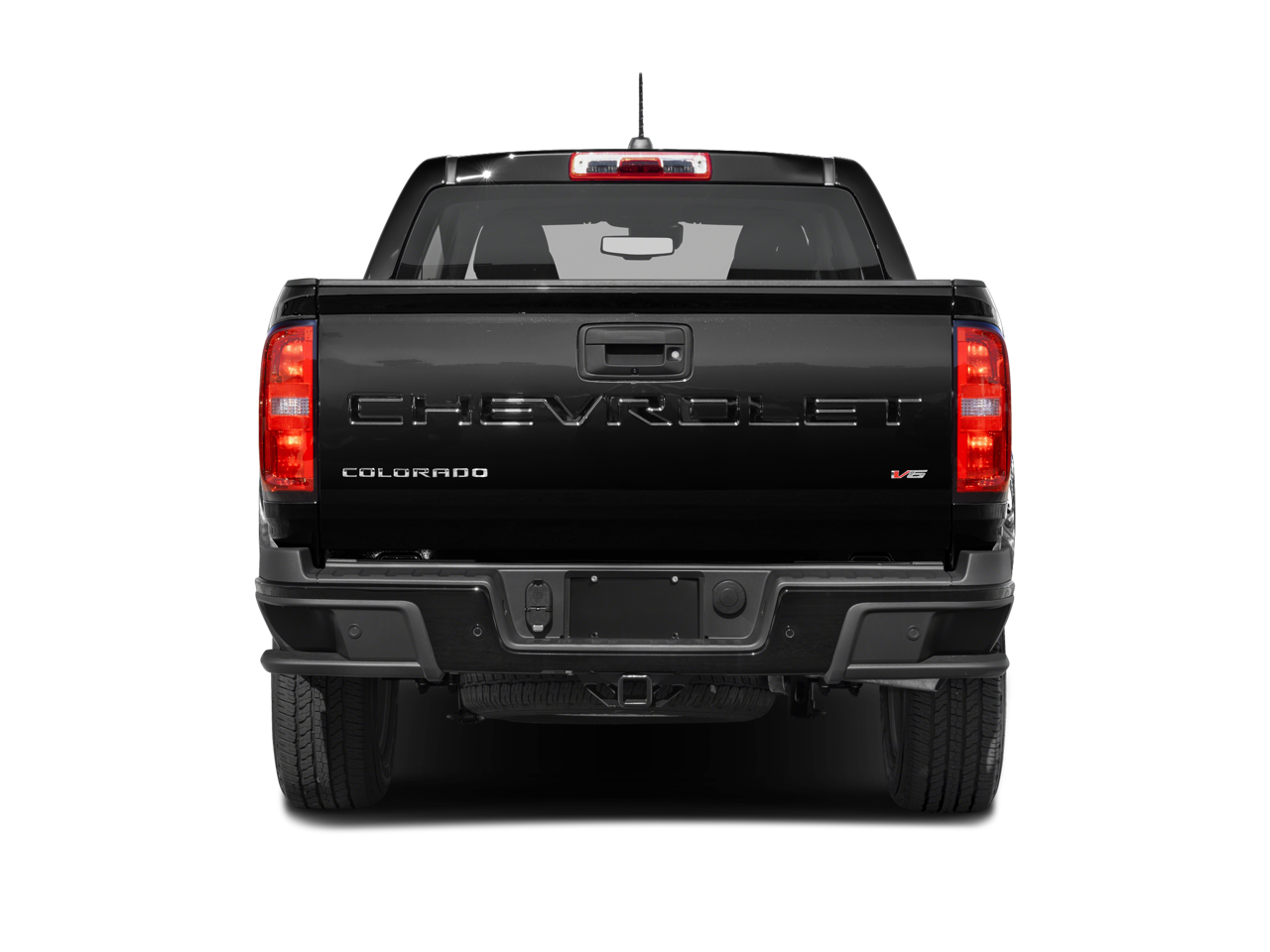

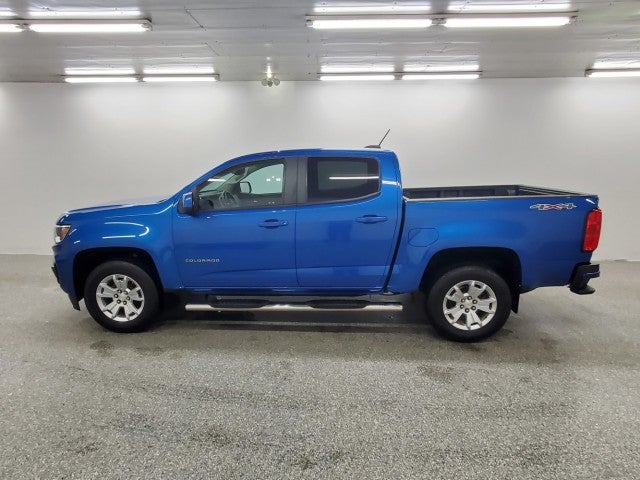

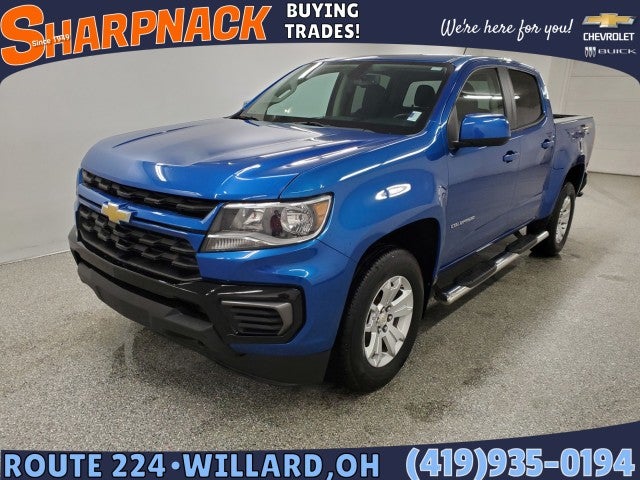

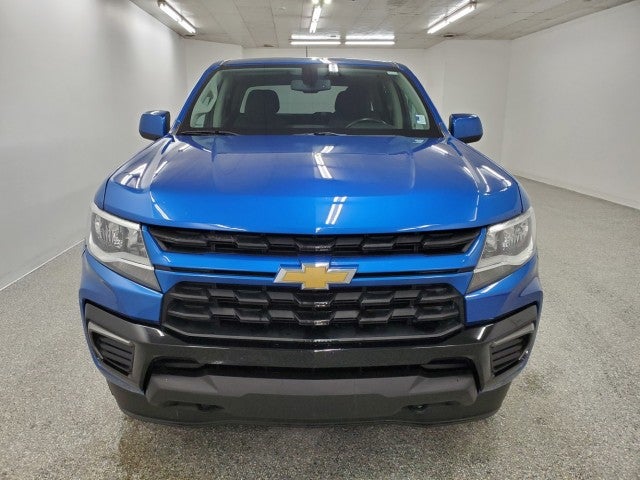

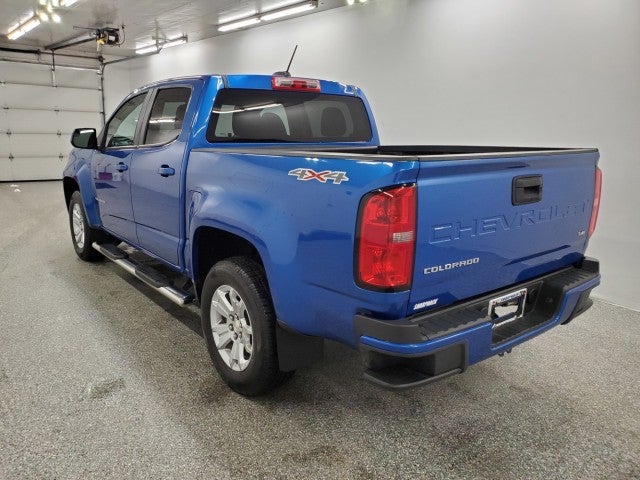

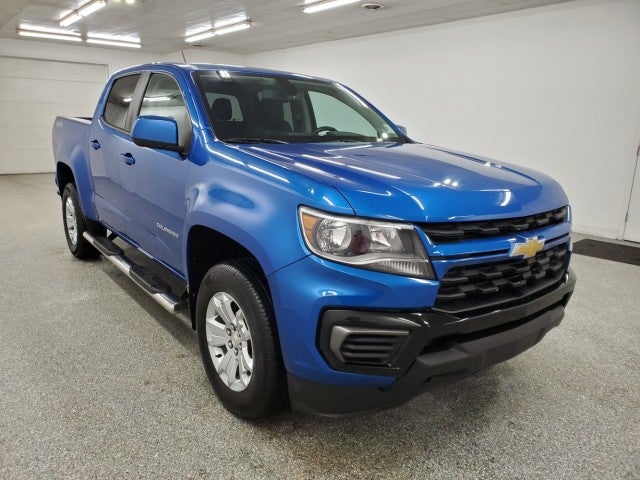

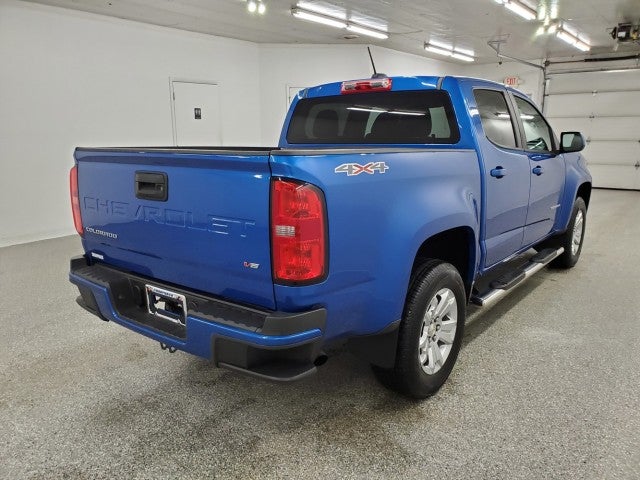

• Vehicle Name: Chevrolet Colorado
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.4
